Overview

In a business scenario, a group of users send attachments to one mail-id. They can send multiple attachments per mail. So, here, we need to find out a way to extract all attachments with their original names from a mail and store it in some folder.

Using Sender-Mail adapter, we read mails with attachments.

For storing attachments to specific sap application directory, we use Receiver-File Adapter along with a custom java adapter module.

Note: Receiver-File-Adapter can store only 1st attachment, so, we create a custom adapter module for this channel which will store multiple attachments to folder.

Sender/Receiver Communication channels can be referred from below link:



Pre-requisites:

Pre-requisites to create a custom java adapter module form SAP PI 7.11 is as below:

  • SAP NetWeaver Developer Studio 7.1
  • Java Runtime Environment 1.6 (Jre 1.6)
  • SAP library (or jar) files for required for module development
    • sap.aii.af.lib.mod.jar                  : <bin>/ext/com.sap.aii.af.lib/lib
    • com~tc~logging~java~impl.jar  : <bin>/system
    • sap.aii.af.svc_api.jar                 : <bin>/services/com.sap.aii.af.svc/lib
    • sap.aii.af.cpa.svc_api.jar          : <bin>/services/com.sap.aii.af.cpa.svc/lib
    • sap.aii.af.ms.ifc_api.ja r            : <bin>/interfaces/com.sap.aii.af.ms.ifc/lib
  • Include above jar files in the library classpath of SAP Netweaver Developer Studio 7.1 via below steps:
    • Navigate to Windows → Preference → expand “Java” → select “Classpath Variables” → Click “New” to create a new variable entry: PI_AF_LIBS →
  • NwceTool
    • This will help to convert EAR files to SDA files
    • It uses JRE 1.6



Java Adapter Module Code:

  • Below java adapter module code is been written to achieve below functionality:
    • Get SAP- Directory path location with external module input variable ‘SapDirPath’
  • and Code is as below:
    /** * */ package com.sap.adaptermodule; import java.rmi.RemoteException; import javax.ejb.EJBException; import javax.ejb.SessionBean; import javax.ejb.SessionContext; import javax.ejb.TimedObject; import javax.ejb.Timer; import com.sap.aii.af.lib.mp.module.ModuleContext; import com.sap.aii.af.lib.mp.module.ModuleData; import com.sap.aii.af.lib.mp.module.ModuleException; import com.sap.aii.af.service.auditlog.Audit; import com.sap.engine.interfaces.messaging.api.Message; import com.sap.engine.interfaces.messaging.api.MessageKey; import com.sap.engine.interfaces.messaging.api.Payload; import com.sap.engine.interfaces.messaging.api.auditlog.AuditLogStatus; import java.io.File; import java.io.FileOutputStream; import java.util.Iterator; /** * @author User * */ public class MAttachToDirBean implements SessionBean, TimedObject { /* (non-Javadoc) * @see javax.ejb.SessionBean#ejbActivate() */ public void ejbActivate() throws EJBException, RemoteException { // TODO Auto-generated method stub } /* (non-Javadoc) * @see javax.ejb.SessionBean#ejbPassivate() */ public void ejbPassivate() throws EJBException, RemoteException { // TODO Auto-generated method stub } /* (non-Javadoc) * @see javax.ejb.SessionBean#ejbRemove() */ public void ejbRemove() throws EJBException, RemoteException { // TODO Auto-generated method stub } /* (non-Javadoc) * @see javax.ejb.SessionBean#setSessionContext(javax.ejb.SessionContext) */ public void setSessionContext(SessionContext arg0) throws EJBException, RemoteException { // TODO Auto-generated method stub } /* (non-Javadoc) * @see javax.ejb.TimedObject#ejbTimeout(javax.ejb.Timer) */ public void ejbTimeout(Timer arg0) { // TODO Auto-generated method stub } public void ejbCreate() throws javax.ejb.CreateException { } private SessionContext myContext; MessageKey amk = null; public ModuleData process(ModuleContext moduleContext, ModuleData inputModuleData) throws ModuleException { Object obj = null; Message msg = null; String SapDirPath = null; try { obj = inputModuleData.getPrincipalData(); msg = (Message) obj; amk = new MessageKey(msg.getMessageId(),msg.getMessageDirection()); Audit.addAuditLogEntry(amk, AuditLogStatus.SUCCESS, "JAM-MAttachToDir| Custom-Java-Adapter-Module (localejbs/MAttachToDir) to store mutliple attachments to directory"); //Get user-input as a "module.key" parameters from communication channels //Input-1: 'SapDirPath' to get folder path where attachments will be stored SapDirPath = (String) moduleContext.getContextData("SapDirPath"); Audit.addAuditLogEntry(amk, AuditLogStatus.SUCCESS, "JAM-MAttachToDir| Directory Path input (SapDirPath)= " + SapDirPath); //Get the input attachment from the source message) Iterator itr = msg.getAttachmentIterator(); while(itr.hasNext()){ //handle attachment Payload payload = (Payload) itr.next(); //get attachment name String atchnm = payload.getContentType(); //this gives output like "application/octet-stream;name=""fnam1.csv" atchnm = atchnm.replaceAll(""", ""); //replace all quoteString (i.e. ") with blank int i1 = atchnm.lastIndexOf("=") + 1; String atchmntNm = atchnm.substring(i1,atchnm.length()); Audit.addAuditLogEntry(amk, AuditLogStatus.SUCCESS, "JAM-MAttachToDir| Attachment found as " + atchmntNm); //Write file to directory byte [] inpbyt = payload.getContent(); File path = new File(SapDirPath + "/" + atchmntNm); FileOutputStream fos = new FileOutputStream(path); fos.write(inpbyt); fos.flush(); fos.close(); Audit.addAuditLogEntry(amk, AuditLogStatus.SUCCESS, "JAM-MAttachToDir| " + atchmntNm + " copied to folder " + SapDirPath); } }catch (Exception e) { ModuleException me = new ModuleException(e); throw me; } return inputModuleData; } }



Steps to Create Java Adapter Module:

  1. Create an EJB project in “SAP NetWeaver Developer Studio 7.1
  2. Assign project names to the EJB and EAR projects
    • EJB Project Name: MAttachToDir_EJB.
    • EAR Project Name: MAttachToDir_EAR (check the option to add EAR project).
    • Click “Next”.
  3. Choose the correct EJB version.
    • Configure Module Project as → SAP EJB J2EE 1.4 Project.
    • Choose the EJB Module → 2.1.
    • Click “Next”.
    • Uncheck the flag to create the EJB client jar interfaces.
    • Click “Finish”
    • Please note, 2 projects will be created, an EJB project (MAttachToDir_EJB) and an EAR project (MAttachToDir_EAR).
  4. Create an Enterprise Bean in the EJB project
    • Right-click on the “MAttachToDir_EJB”.
    • Select: New → EnterpriseBean.
  5. Create the package and class for the EJB project
    • EJB Name                           : MAttachToDir
    • Bean Type                          : Select the dropdown “Stateless Session Bean”.
    • Give a default EJBPackage: com.sap.adaptermodule.
    • Uncheck option                   : generate default interfaces.
    • Check option                      : add optional interfaces.
    • Click “Next”.
  6. Assign user-module interfaces: Use the following values to assign to the parameters in the screen below:
    • Remote interface              : com.sap.aii.af.lib.mp.module.ModuleRemote
    • Home interface                 : com.sap.aii.af.lib.mp.module.ModuleHome
    • Local interface                  : com.sap.aii.af.lib.mp.module.ModuleLocal
    • LocalHome interface         : com.sap.aii.af.lib.mp.module.ModuleLocalHome
    • Uncheck option                 : Service End point
    • Click ‘Finish’
  7. Examine and verify the content of ejb-jar.xml
    • On the left panel, navigate: EJB project → ejbModule → META-INF.
    • Double click on the “ejb-jar.xml”.
    • When the “ejb-jar.xml” is displayed on the right panel, select the “Enterprise Beans” tab at the bottom.
    • Expand “Session Beans” and select “MAttachToDir”.
    • All the local and remote interfaces should be displayed.

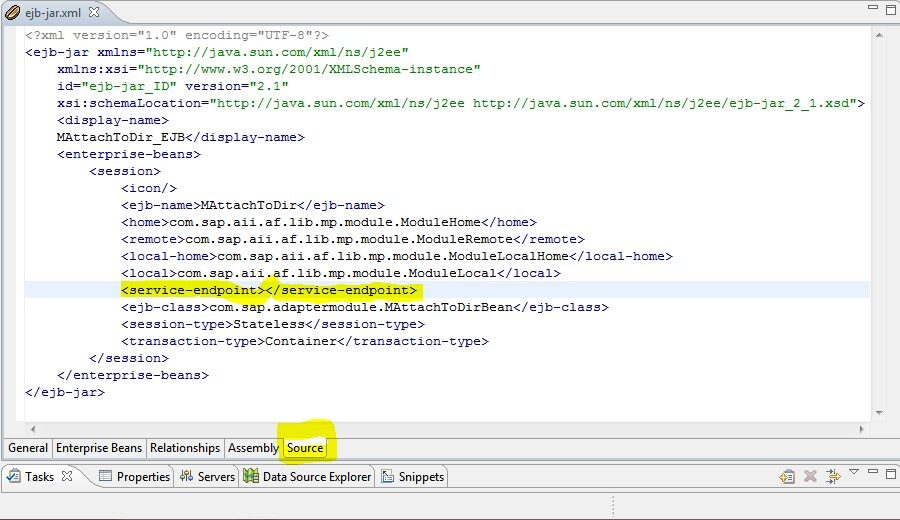

    • The “Service endpoint” should be empty. If not, then go to “Source” and edit the tag “<service-endpoint>”with blank value
  8. Enter the JNDI name in the ejb-j2ee-engine.xml
    • On the left panel, double click on the “ejb-j2ee-engine.xml”.
    • “Ejb-j2ee-engine.xml” will be displayed on the right panel.
    • Expand “Session beans” and click on “MAttachToDir”.
    • Enter the JNDI Name: MAttachToDir.
    • Save the file.
  9. Include external libraries in the EJB project so the java class can be compiled
    • Right click on the EJB project.
    • Navigate to “Build Path”.
    • Select “Configure Build Path”.
    • In the Properties dialogue box, click the “Add Variable”.
    • Select the variable, “PI_AF_LIBS”, created earlier
    • Click on “Extend”.
  10. Enter the code for “MAttachToDirBean”
    • Copy and paste code from above to below project file
  11. Delete the package containing the Local and Remote interfaces from the build
    • Expand the “build” folder in the EJB project.
    • Delete all the folders created under build → classes → com → sap -> aii
    • Do not deletebuild → classes → com → sap -> adaptermodule”
  12. Configure the EAR project: The EAR file contains the following:
    • JAR file created from the EJB project.
    • It has configuration information of the libraries, services and interfaces that will be used by the user-module in the EJB.
    • It contains the SAP manifest file, which has unique identifiers for each specific EAR. The manifest information is generated uniquely each time it is modified.
    • Steps to Configure EAR:
      • Expand the EAR project.
      • Double-click on the “application-j2ee-engine.xml” file.
      • In the right panel, click on the “Reference” and then on the “+” sign to “Add Elements”.
      • Click “Create New” in the dialog.
      • Add below elements as given in table
      • Reference targetReference typeReference target typeProvider name
        engine.security.facadehardservicesap.com
        engine.j2ee14.facadehardlibrarysap.com
        com.sap.aii.af.svc.facadehardservicesap.com
        com.sap.aii.af.ifc.facadehardinterfacesap.com
        com.sap.aii.af.lib.facadehardlibrarysap.com
        com.sap.base.technology.facadehardlibrarysap.com
      • Check the option “Failover Mode”.
      • Save the file.
  13. Exporting SAP EAR File
    • Right Click on EAR project -> Export -> SAP EAR File
  14. Custom java adapter module has been created as EAR file “MAttachToDir_EAR.ear



Steps to Covert EAR files to SDA Files using NWCE-Tool:

  • From above steps, java adapter module EAR file “MAttachToDir_SDA.ear” gets created.
  • To use this module in SAP-PI, we need to convert it in to SDA file format with “.sda” extension.
  • Pr-requisites for EAR to SDA file conversion:
    • Java Jre1.6      Check Java Jre1.6 Directory (here C:Program FilesJavajre1.6.0_01)
    • nwcetool          Copy nwcetool folder in to C:NWDS
    • Any local Windows system

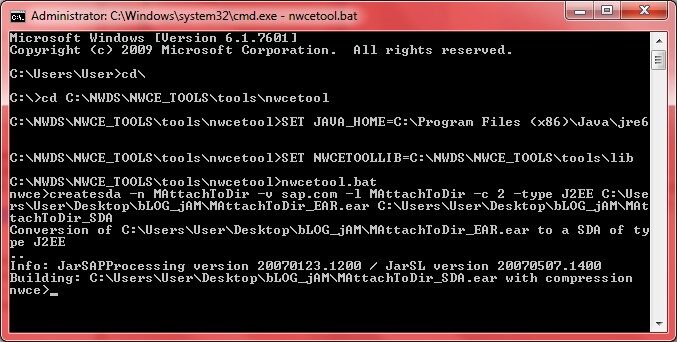

  • Command line steps for EAR to SDA file conversion:
    • cmd>cd
    • cd C:NWDSNWCE_TOOLS ools
      wcetool
    • SET JAVA_HOME=C:Program Files (x86)Javajre6
    • SET NWCETOOLLIB=C:NWDSNWCE_TOOLS oolslib
    • nwcetool.bat
    • createsda -n MAttachToDir -v sap.com -l MAttachToDir -c 2 -type J2EE C:UsersUserDesktopLOG_jAMMAttachToDir_EAR.ear C:UsersUserDesktopLOG_jAMMAttachToDir_SDA
    • Where
      • createsda -n JNDI-Name -v Vendor-Name -l JNDI-Name -c 2 -type J2EE Source of EAR_file_path Destination ofSDA_file_Path
  • Now rename file “MAttachToDir_SDA.ear” to “MAttachToDir_SDA.sda



Steps to Deploy SDA files in PI-Server:

  • SDA File deployment using Telnet in SAP-PI:
    1. Place the sda file (MAttachToDir_SDA.sda) in directory ‘/usr/sap/trans/EPS/in/’
    2. Update the file ‘/usr/sap/trans/EPS/in/deploylist.txt’ with the file to be deployed
    3. Use below commands
      • telnet localhost <port>
      • Username: <enter j2ee_admin user>
      • Passwrod: <*******>
      • deploy list=/usr/sap/trans/EPS/in/deploylist.txt version_rule=all
    4. Post Deployment, SDA file gets extracted in below SAP-PI’s folder path, having folder name as of JNDI-Name ‘MAttachToDir
      • /usr/sap/<systemID>/<instance>/j2ee/cluster/apps/sap.com/MAttachToDir/
    5. In SAP-PI’s NWA, we can check deployed modules as below:
      • SAP-PI’s NWA url: http://<sap-pi-host>:<sap-pi-port>/nwa
      • Go to -> NWA -> Problem Management -> Java -> JNDI Browser Operation Management -> System -> Start & Stop -> Java EE Applications
