Pick Pack Pass Process in EWM

we use this function to co-ordinate picking packing, and transportation of products in different activity areas of your warehouse. For example you transport the products from one activity area to another using conveyor. From organizational point of view, an activity area can correspond to an aisle for which a warehouse worker is responsible. When the warehouse worker has picked a WO in an area, the goods are passed to next area.

The movement from one activity area to another can be done by the automatic conveyor system. There may also be a pick by light in the various zones to support the picking process in that zone.

The pick pack pass process can only be used in RF Environment.

There are 2 types of controls:

System Driven: in this the next WO in the sequence is determined by the sequence assigned to the activity areas that we joined.
User Driven: in this the next WO in the sequence is determined by the user or the MFS.

Step1: Create a storage type for pick pack pass.

Note: you can use existing storage type also.

SPRO –> IMG –> EWM –> Master Data –> Define Storage type.

Step2: Define Storage Section (Optional).

Step3: Define the storage bin structures to generate bins as below.

Here

Aisle 01 –> Section PP01 –> Activity Area PP01

Aisle 02 –> Section PP02 –> Activity Area PP02

Aisle 03 –> Section PP03 –> Activity Area PP03

Step4: Generate the storage bins.

You can generate the bins in /SCWM/LS10.

Step5: Create the start end bins.

Go to tcode /SCWM/LS01.

Step6: Create activity areas.

SPRO –> IMG –> EWM –> Master Data –> Activity Area.

Step7: Assign Bins to Activity Areas.

Here we will assign

All bins of aisle 02 –> PP01

All Bins of aisle 03 –> PP02

All Bins of aisle 04 –> PP03

Step8: Assign Sort Sequence for Activity Area.

Step9: Sort the Bins (/SCWM/SBST).

Step10: Maintain Start End Bins for Activity Area (/SCWM/SEBA).

Step11: Create Materials (Optional) And Maintain Stock for each material in respective activity area.

In My Case I am using three materials

E3900PP01 –> for this material stock maintained in bins of activity

Area PP01 (Aisle 02).

E3900PP02 –> for this stock maintained in bins of activity area PP02

(Aisle 03).

E3900PP03 –> for this material stock is maintain in activity area PP03

(Aisle 04)

Step12: Join the Activity Areas.

SPRO –> IMG –> EWM –> Cross Process Settings –> Warehouse Order –> Join Activity Areas.

Step13: Define Warehouse Order Creation Rule.

Pack Profile – P001.

Warehouse Order Creation Rule

Step14: Define packaging specification for creating auto pick HU.

Step15: Maintain search sequence for WOCR.

Step16: Maintain Queue Determination Criteria.

Note: Make Sure you maintained the corresponding access sequence also.

Step17: Maintain Resource Group.

Step18: Maintain Queue Sequence per resource group.

Step19: Maintain Resource (Optional).

Step20: Maintain User (Optional).

Step21: Create a Delivery with the three products.

Step22: Create & Confirm WT for the three items in EWM.

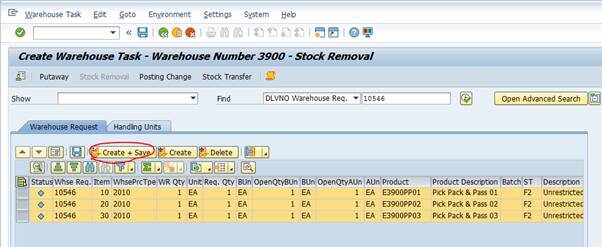

Select All & Click on Create + Save.

Step23: Now go to monitor check the no of warehouse orders & their higher level WO.

Observations:

For the WO’s the 40000121, 40000122, 40000123 the Higher Level WO is 40000120.
The first WO 40000121 is in Open status & the rest are in waiting status.
For the WO 40000121 the Subsequent WO is 40000122, similarly for the WO 40000122 the subsequent WO is 40000123 & for the WO 40000123 no subsequent WO since this is the last one.

Check the Higher Level WO 40000120 In the Monitor.

WOCR: PPPP, Queue: OUTBOUND, Activity Area: PPPP.

Check Box Warehouse Order Means this WO Contains another WO.
