Few Cents on SAP HCI EDI with 997
Few of my SAP integration consultant colleagues asked me about SAP HCI EDI integration details, so i thought i will share few cents with everyone
SAP has released HCI EDI integrations for enterprise license account holders only
The technical procedure of HCI edi integration is almost like a see-burger or B2B ADD ON using splitter to split the messages and converter to convert edi to xml and there after mapping conversion

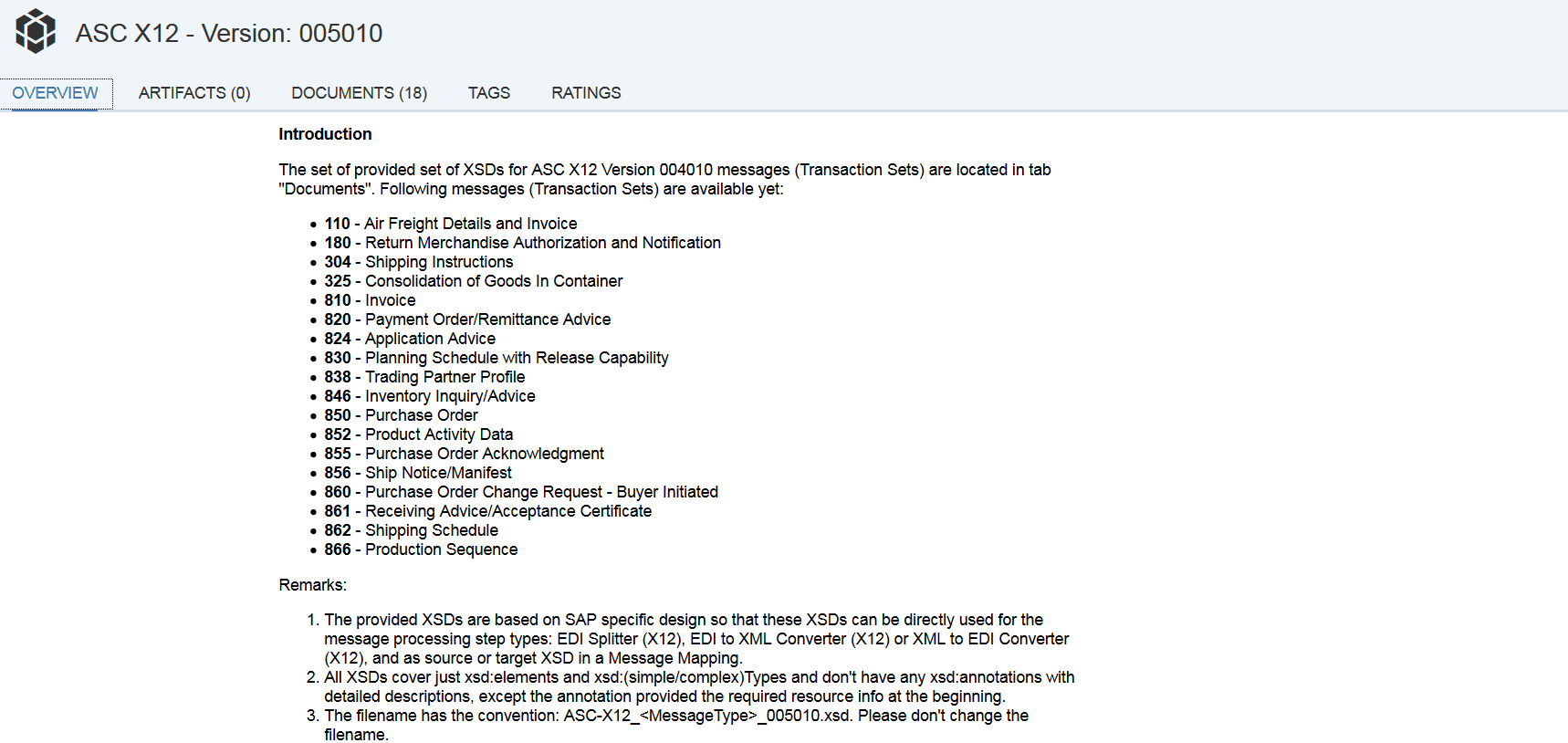

Step1: Download available schema (xsd) ex:850 PO from portal to local NFS
Step 2:- Import the schema’s to i-flow

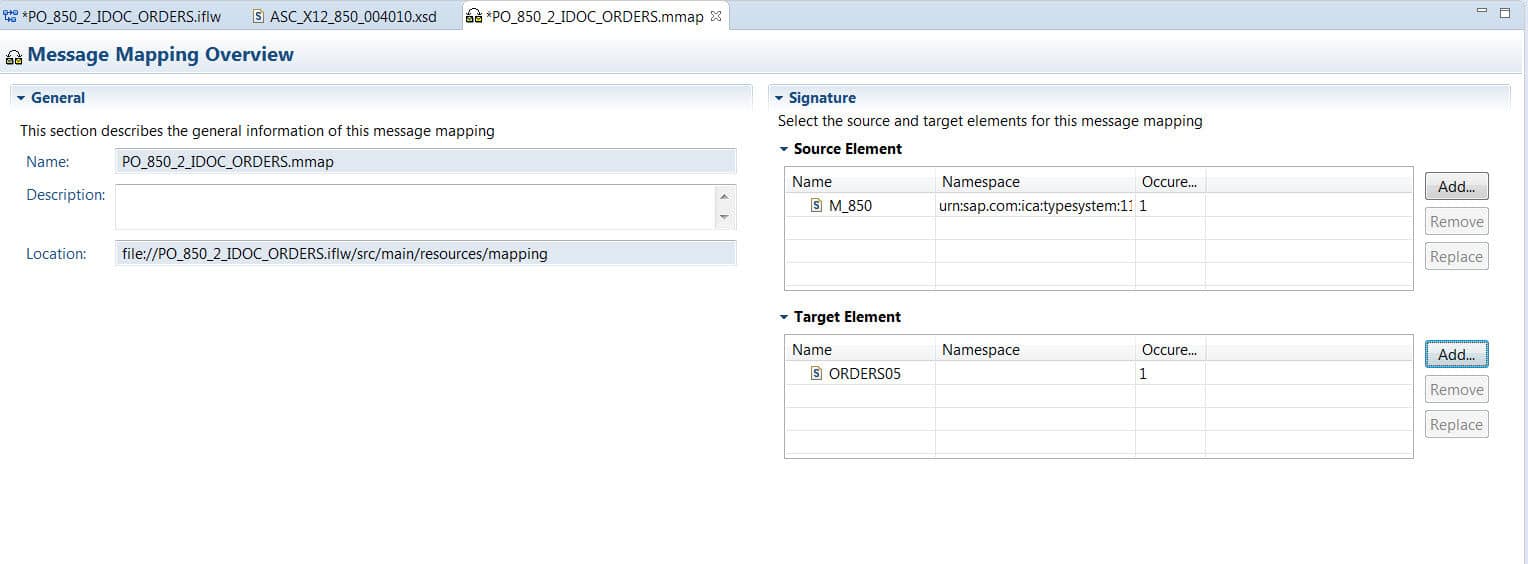

Step 3:- Use EDI Splitter to split Interchange document and EDI to XML converter to convert EDI data to xml and mapping conversion to convert EDI XMl to IDOC XML
Give all the required parameters mentioned in below help documents and maintain control number ranges and other inputs then execute checks for errors, deploy and test
https://help.sap.com/viewer/368c481cd6954bdfa5d0435479fd4eaf/Cloud/en-US/584a3beb81454d40acb052ae371c7063.html

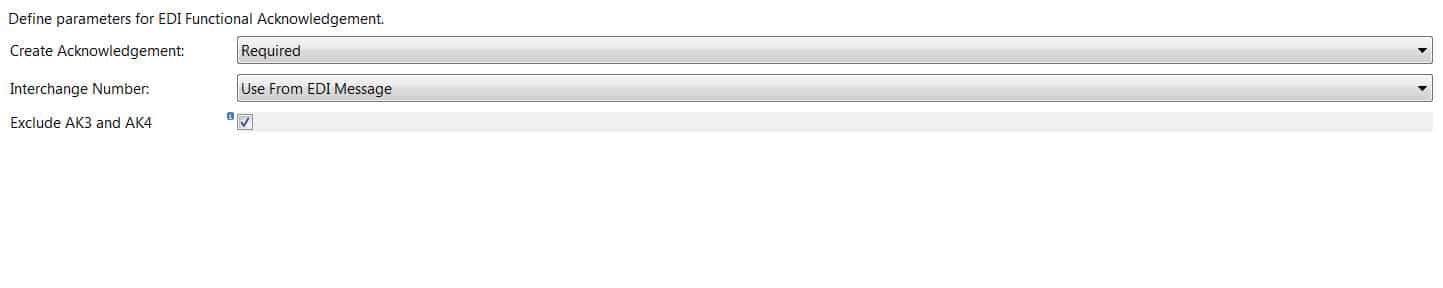

997:-
Select 997 required or not required
Select if 997 control number needs to be created newly or use it from request EDI message
Select if you want to exclude or include optional AK3 and AK4 segments
Additional Info:-

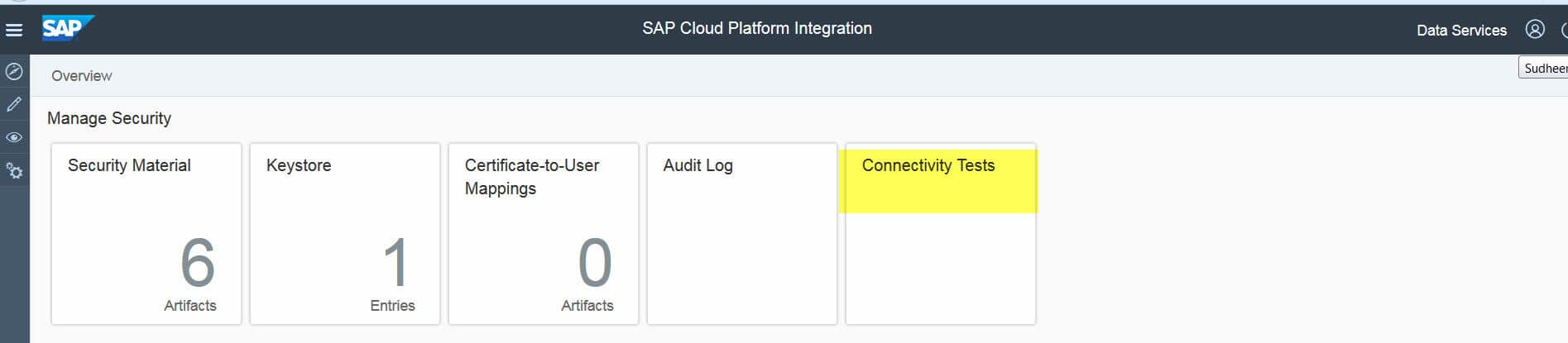

You can test the server connectivity or ssl like a PI communication channel ping for connectivity
